Guide to Upgrade Firmware for Samsung Wave by mememtech

I. REQUIREMENTS
- PC or Laptop decent configuration for a little bit heavy program Download
- Cable comes factory (NHE genuine, not fake that shall die machine) + Samsung Kies + 5.65 Multiloader Link down : - Kies

http://www.samsungapps.com/about/onPc.as

- USB Driver New

http://www.mediafire.com/?l0id1gy98xswgn1

- Multiloader
5.65 http://www.mediafire.com/?6z8eaj1idi7acnb

5.67 http://www.mediafire.com/?i81jmxhj0y3bc74

II. PREPARATION
To be sure you get your connection or not see Kies ago - Open Samsung Kies after installed on your PC - Connect phone to PC by cable (If asked, choose the connection mode samsung Kies - by default from Manufacturer will not be asked unless you have changed) - Wait for the connection procedure is finalized - Disconnect your phone from the cable - the first FW extract directory, eg \ ... \ S8500 XPKJ1 III. Steps 1. Run the program Multiloader 5.65 a / Select the cell in the Control LSI b / Select the cell Full download c / Select the cell and lead to Boot file ... \ S8500 XPKJ1 \ BOOTFILES d / Select the cell ASSM -> \ S8500 XPKJ1 \ amss. bin e / Select the cell in Apps -> S8500 XPKJ1 \ apps_compressed.bin f / Select the cell Rsrc1 -> S8500 XPKJ1 \ Rsrc_S8500_Open_Europe_Common.rc1 g / Select the cell Rsrc2 -> S8500 XPKJ1 \ Rsrc2_S8500_Open_Euro_Common (Mid). rc 2 h / Select Car Factory FS -> S8500 XPKJ1 \ FactoryFs_S8500_Open_Europe_Common.f fs i / Select the cell CSC -> S8500 XPKJ1 \ CSC_S8500_Open_Europe_Common_SER.csc j / Select the cell SHP APP -> \ S8500 XPKJ1 \ ShpApp.app k / Select the cell FOTA -> \ S8500XPKJ1 \ bplib_S8500OpEuroCommon.fota ( Note: the FW any FOTA file to add up, does not have FW FOTA file then ignore all of you ) ... At the first FW extract directory, to be inspected see FW package unpacking the components to not miss. One of you for up missing FOTA file should finish up at the machine will error FOTA file is not installed there must be up to FW. 2. Performed on Wave - Shutdown - Press 3 key sources simultaneously - Turn down the volume - Lock (lock) and hold a few seconds. When the phone screen appear the words "Download Mode" red - Plug the cable into the phone - Kick Port search box. When you see the word Ready or Ready-Lismore, then OK. Usually your order received after 10 seconds - Kick to the box Download - machine takes about 25 minutes before I finished. When it reboots -> So complete is

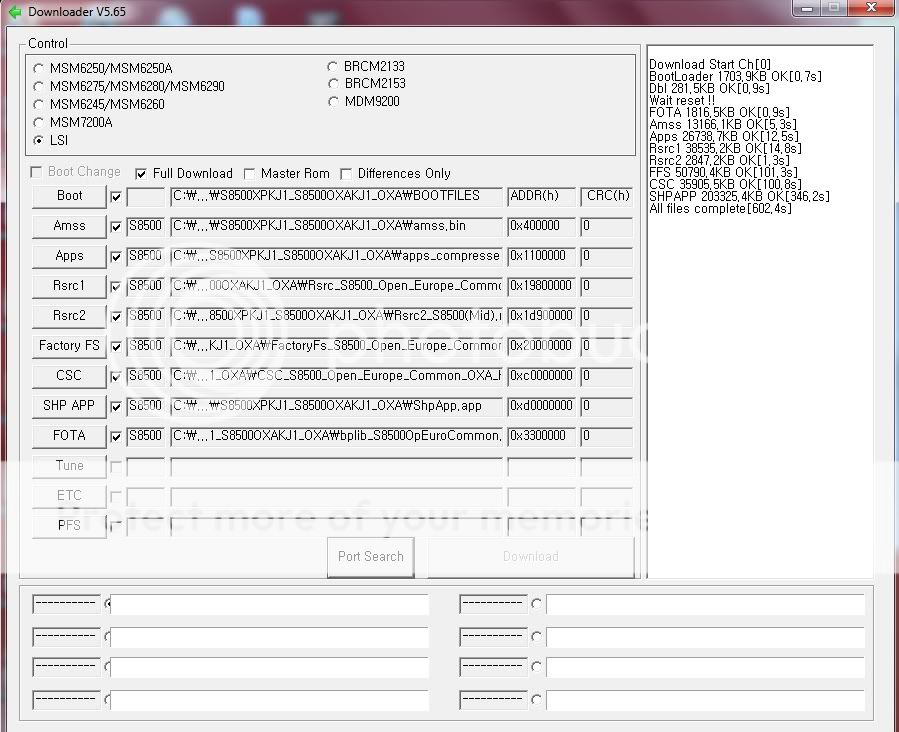

Figure illustrates the nature of

IV. The point to note in the implementation process up FW:
1. Do not use other applications, other work prevent crashes due to the slightly heavier load FW
2. The first stage, about 3 minutes, maybe it will not progress at all. The mouse may have hourglass (busy), ... haphazard, do not kick crashes.
3. During this period keep seeing the word search and Download Port dimming is still running.
4. After that period the machine (phone) self flashing screen (reset). Then there was the card error "Open port error" or "Serial Port Error". If so - Please press button to search Port & wait it reloads to the COM port and press Download to process up to FW
- if still capble error to remove, remove the battery & restart the computer and then disregarding
5. Do not choose a confused, mixed up the two FW module
6. When completed - will report on Multiloader All complete file , reboot the machine 1. At this time the blue screen appears - not a fault. It's getting hard process, FW, disk, font ... you to stand by and it will start automatically once 2. Stage 2 will be OK and can disconnect it.
